The system I'm using is a Dell Dimension 4500, 2 ghz Intel P4
processor, 512 Mb Ram. The base Period is set high to eliminate
any possible reat time problems.
Even So, at 4000 steps/in, that translates into over 5 in/second,
or 300 in/min.
EMC2 - Configuration

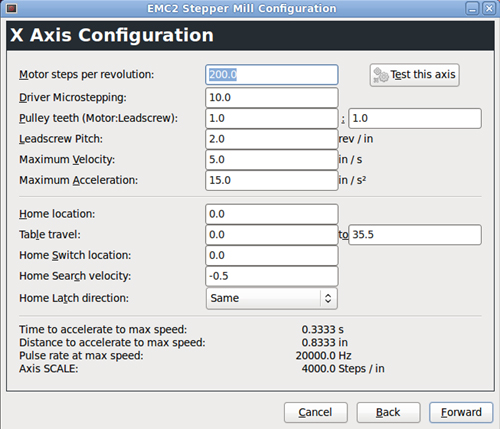

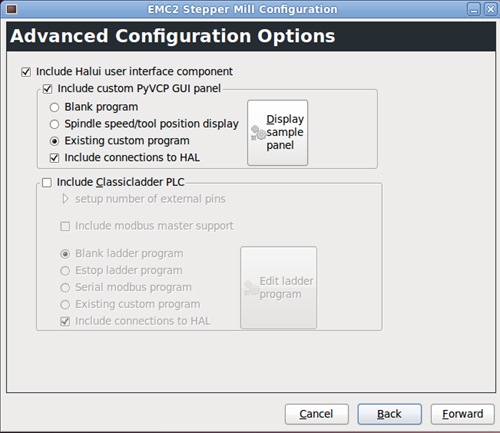

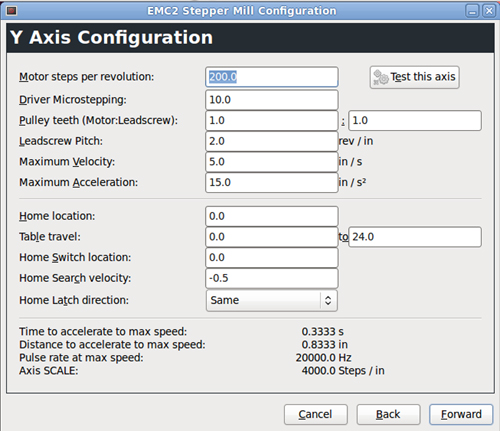

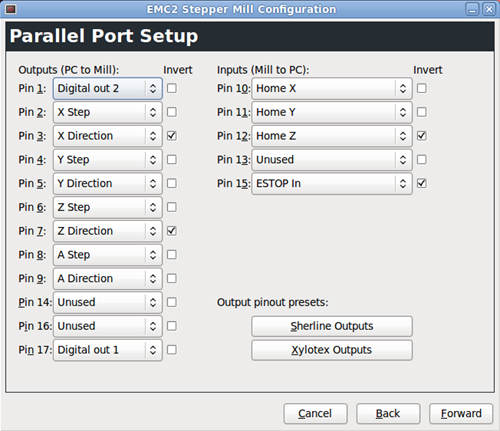

These are the parameters I'm using with the Stepconf Wizard to configure EMC2 on my system.
|
The system I'm using is a Dell Dimension 4500, 2 ghz Intel P4 processor, 512 Mb Ram. The base Period is set high to eliminate any possible reat time problems. Even So, at 4000 steps/in, that translates into over 5 in/second, or 300 in/min. |
|
|
|
|
